KW4 RICE TRANSPLANTER

FOR PROFESSIONAL
PERFORMANCE

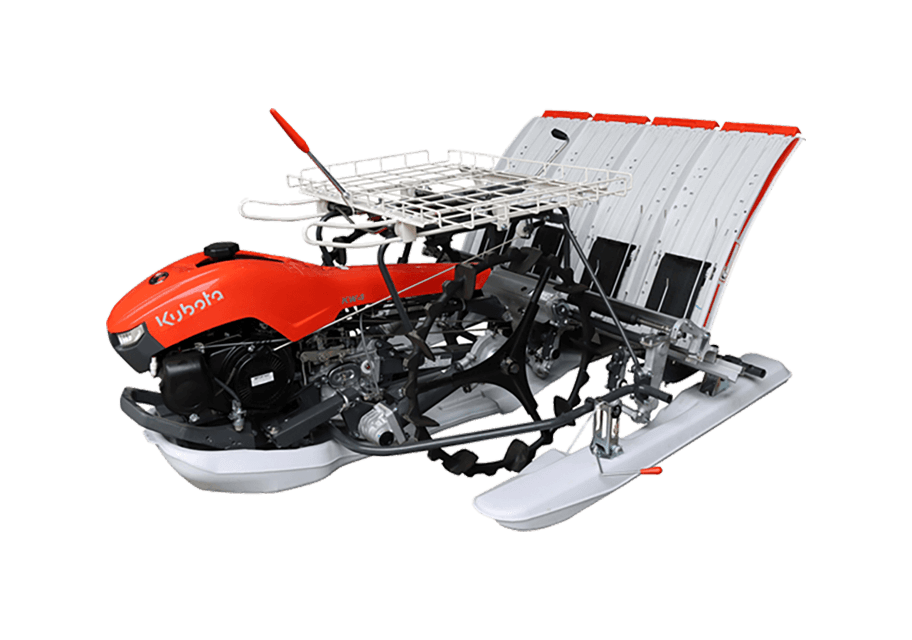

KW4 RICE TRANSPLANTER

Boosting rice planting with improved speed, precision and fuel-saving capabilities, Kubota rice transplanters ensures performance and efficiency during the planting season
HORSE POWER
5.0PS
PLANTING SPEED
0.47 - 0.85m/s
NUMBER OF PLANTING ROWS
4Rows
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

FEATURES

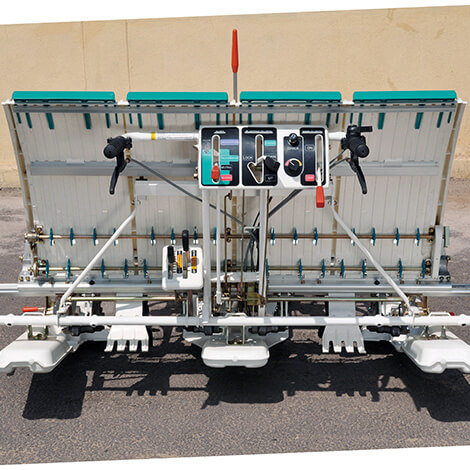

Large Seedling Platform

Replenish seedlings is exceptionally easy so that transplanting continues smoothly and efficiently.

Lightweight, Compact Design

Plastic materials are utilized in various parts of the body to enhance durability while reducing weight. The lightweight, compact design not only enhances maneuverability, but also makes both models very easy to transport.

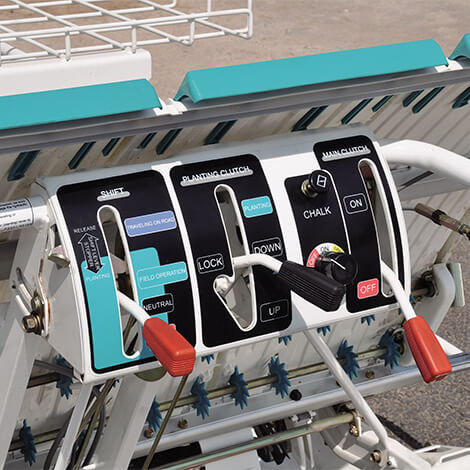

Conveniently Located Levers

All controls for both models include the main clutch level, planting clutch lever, shift lever and accelerator lever, within easy reach. As a result, even a new operator would find it easy to start planting operations in no time.

Starting Operations Simple and Easy

Transplanting operations can start immediately once the Planting Clutch and the Shift Lever are placed in the “ON” position. After that, all the operator needs to do is to manipulate the Accelerator Lever to select the optimal operational speed.

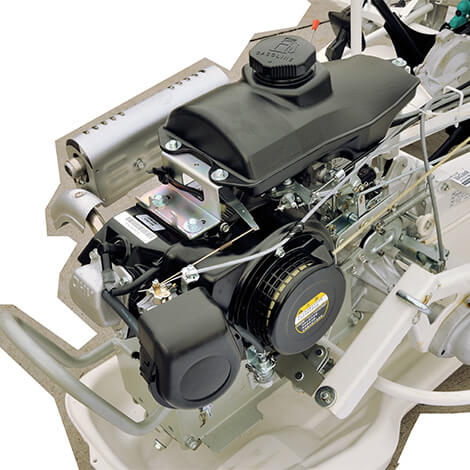

OHV Petrol Engine, Powerful & Efficient

Both models mount a powerful 4.3 hp overhead valve (OHV) petrol engine that’s easy to start. Innovative and unique, this partnership makes possible an outstanding operational performance in a broad range of field conditions at a maximum operational speed of 0.77 m/s.

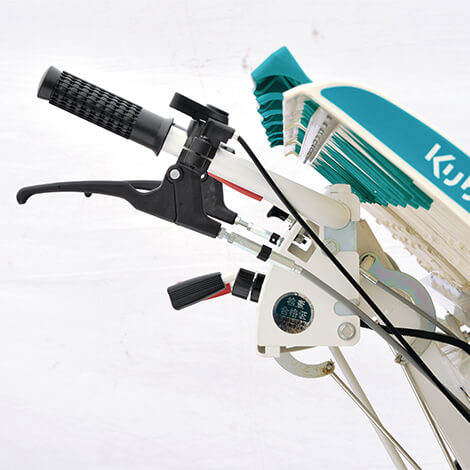

Handle Height Adjustment

Handle height is easily and simply adjusted to permit each operator to select the most efficient and least tiring position during transplanting operations.

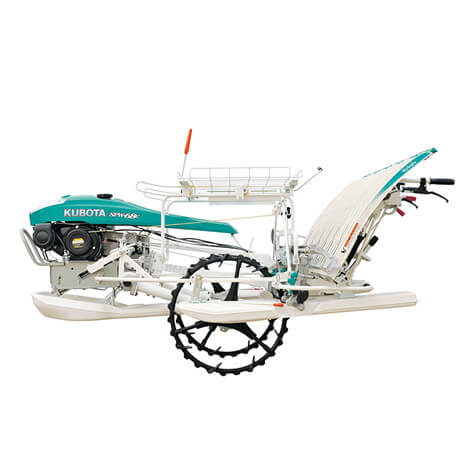

Large-Diameter Wheels Especially Appreciated in Muddy Field Conditions

Even in deep-tilled fields, the large 660mm diameter of the wheels contributes to the superior performance of both models during travel. Moreover, the hexagonal shape of the axle contributes to the superior durability.

VIDEO

MODELKW4
TYPEWalk-behind type
MACHINE DIMENSIONSOverall length (mm)2140
Overall width [during operation] (mm)1630
Overall height (mm)900
BASE MACHINERY MASS (KG)169
ENGINEModel NameMZ200-B-2-A
NameAir-cooled 4-stroke single-cylinder OHV gasoline engine
Total engine displacement (L [cc])0.192 {192}
Output/rotational speed (kW [PS]/rpm)3.7 {5.0} / 3000
Usable fuelRegular automobile gasoline (unleaded)
Fuel tank capacity (L)10
Ignition systemNon-contact electromagnetic ignition
Starter systemRecoil starter
MOVEMENT PARTSWheel adjustmentHydraulic system (wheel up/down)
WheelTypeThick rimmed rubber wheels
Outer diameter (mm)Φ660
Number of gearsMain shift: 2 gears for moving forwards, 1 gear for moving in reverse
PLANTING PORTIONNumber of planting rows4
Planting row spacing (cm)30
Planting hill space (cm)12・ 14 ・ 16 ・ 18 ・ 21*1
Number of hills (hills/m2)28・ 24 ・ 21 ・ 19 ・ 16*1
Planting depth (mm)7 to 37 (5 settings)
Hill quantity adjustment methodCrossfeed distance (mm)/revolution10.3/26、 13.4/20
Scraping depth (mm)7 to 17 (across 9 settings)
PLANTING SPEED (M/S)0.47 to 0.85
TRAVELING ON ROAD SPEED (M/S)0.90 to 1.64
OPERATING EFFICIENCY (HA/H)0.14 to 0.26
SEEDING CONDITIONSType of seedlingSeedlings in mat
Seedling height (cm)10 to 25
Foliar age (leaves)2 to 4.5
Number of spare seedlings that can be loaded (boxes)3
*Kubota reserves the right to change the specifications without notice.
