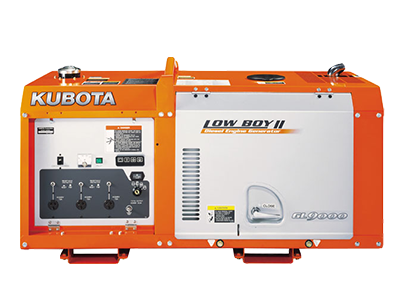

GL 9000
LOWBOY II SAVESSPACE AND THEENVIRONMENT
GL 9000
LOWBOY II SAVES SPACE AND THE ENVIRONMENT
LOWBOY II saves space and the environment.
The LOWBOY II series is designed to have the minimum possible height while using vertical diesel engines.
This is achieved by direct coupling of the engine crankshaft with the cooling fan.
Since they require less space for operation, the range of possible application has been greatly increased.
- SINGLE PHASE
- 25.0-36.4AMPS
- OUTPUT RANGE
- 8.0kVA
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.
| MODEL | GL9000 | GL6000 | ||
| SPECIFICATION | Type | – | Rotating field single-phase AC generator | |
| Frequency | Hz | 50 | ||
| Standby Output | kVa(kW) | 6.0 (6.0) | 8.8 (8.8) | |
| Prime Output | kVa(kW) | 5.5 (5.5) | 8.0 (8.8) | |
| Voltage – Single Phase | V | 220 | ||
| Voltage – Three Phase | V | – | ||
| Armature Connection | – | Series | ||
| Phase / Wire | – | ½ | ||
| Power Factor | – | 1 | ||
| No. of Poles | – | 2 | ||
| Insulation | Class | Rotor coil; class F, Stator coil; class B | ||
| Voltage Regulation | % | 5.0 (No load to full load) | ||
| Type of Coupling | – | Direct coupled | ||
| AMPS | Single Phase 220V | A | 25 | 36.4 |
| Three Phase 380V | A | – | ||
| NO. OF RECEPTACLES | 6-15R | – | 2 | |
| TERMINAL | Terminal | – | Available | |
| DIESEL ENGINE | Type | – | Vertical, water-cooled, 4-cycle diesel engine | |
| Model | – | Z482 | D722 | |
| No. of Cylinders | – | 2 | 3 | |
| Bore x Stroke | mm(in.) | 67.0×68.0 (2.60×2.70) | ||
| Displacement | LL (cu. In.) | 0.479 (29.2) | 0.719 (43.9) | |
| Engine Speed | Rpm | 3000 | ||
| Continuous Rated Output | kW (HP) | 6.9(9.3) | 10.3(13.8) | |
| Lubricant (API classification) | – | Above CD grade | ||
| Oil Capacity | L (qts.) | 2.2 (2.32) | 3.4 (3.60) | |
| Coolant Capacity | L (qts.) | 3.7 (3.92) | 4.1 (4.35) | |
| Starting System | – | Electric – 12 volt DC | ||
| SET | Fuel | – | Diesel fuel No.2 (ASTM D975) | |
| Fuel Consumption | At Full Load | 2.2 (0.58) | 3.2 (0.85) | |
| At ¾ Load | 1.8 (0.48) | 2.5 (0.67) | ||
| At ½ Load | 1.5 (0.39) | 2.1 (0.55) | ||
| At ¼ Load | 1.2 (0.31) | 1.8 (0.47) | ||
| Fuel Tank Capacity | L (gal.) | 28.0 (7.4) | 28.0 (7.4) | |
| Continuous Operation Hours | At Full Load | 12 | 8.5 | |
| At ¾ Load | 15.6 | 11.2 | ||
| At ½ Load | 18.7 | 13.3 | ||
| At ¼ Load | 23.3 | 15.6 | ||
| Battery (Ah/5h) | – | 12V (28Ah) | 12V (36Ah) | |
| Dimensions LxWxH | mm | 1066x618x698 | 1281x618x698 | |
| (in.) | (42.0×24.3×27.5) | (50.4×24.3×27.5) | ||
| Approx. Net Weight | Kg(lbs.) | 235 (518) | 295 (650) | |
| Sound Level (Full Load at 23 ft. [7m]) | cB (A) | 65 | 67 | |
| Emergency Stop System | – | In case of abnormal: Oil pressure, water temperature, or when the access terminal cover is opened | ||
*Kubota reserves the right to change the specifications without notice.
