U50-5S

HIGH PERFORMANCE AND ZERO
TAIL SWING TO GET YOU IN AND
OUT OF THE TOUGHEST AND
TIGHTEST DIGGING JOBS.

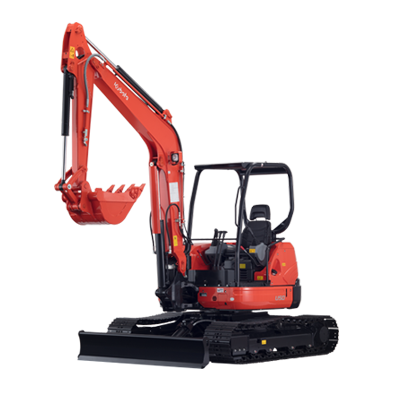

U50_5S_T

U50-5S

HIGH PERFORMANCE AND ZERO TAIL SWING TO GET YOU IN AND OUT OF THE TOUGHEST AND TIGHTEST DIGGING JOBS.
With the Kubota U50-5S, handle any job with confidence. The Kubota Mini Excavator combines superior power and outstanding versatility to tackle demanding jobs in a variety of conditions.
RATED OUTPUT (SAE J1995 GROSS)
Canopy28.8KW (38.6 HP) / 2,250 RPM
Cabin28.5KW (38.2 HP) / 2,250 RPM
MACHINE WEIGHT (RUBBER/STEEL CRAWLER)
Canopy4,705 / 4,790KG
Cabin4,780 / 4,865KG
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

SHARE

FEATURES

The One Pump Load Sensing System

The One Pump Load Sensing System

The system adjusts the hydraulic pressure automatically according to the load changes and reacts precisely to the movement of the control lever. Since the engine load is small, various inching and compounding operations can be undertaken while eliminating unnecessary loss of hydraulic flow.

Auto Idling System

Auto Idling System

Kubota’s Auto Idle system helps save up to 10% fuel. When the control levers are in neutral for more than four seconds, the engine idles automatically. Move any control lever and the engine immediately engages. This innovative feature reduces noise, exhaust emissions and running costs.

Third line hydraulic return

When working with one-way hydraulic attachments, such as a breaker, the standard third-line hydraulic return system allows oil to flow directly back to the tank without running through the control valves. This contributes to less oil contamination, reduced back pressure, and greater oil flow efficiency.

Third line hydraulic return

Clean-running Kubota Engine

Powerful and dependable, U50-5S’s diesel engine delivers superior horsepower and performance. It offers low noise and vibration levels, exceptional fuel efficiency.

Clean-running Kubota Engine

VIDEO

MODELU50-5S
Bucket capacitym30.16
Std. bucket width: (with/without cutting blade)mm650 / 600
Machine weight (rubber/steel crawler)Canopy (rubber/steel crawler)Kg4705 / 4790
Cabin (rubber/steel crawler)Kg4780 / 4865
Operating weight (Including operator weight: 75kg) Canopy (rubber/steel crawler)Kg4780 / 4865
Cabin (rubber/steel crawler)Kg4855 / 4940
Dimensions (In transport condition)Overall lengthmm5510
Overall heightmm2540
Overall widthmm1960
Min. ground clearancemm320
EngineModelCanopyKubota V2203-M-E3-BH-BR2
CabinKubota V2203-M-E2-BH-BR1
Total displacementcc2197
Rated outputCanopykW (HP) / rpm28.8 (38.6) / 2250
CabinkW (HP) / rpm28.5 (38.2) / 2250
Working rangeMax. digging heightmm5630
Max. dumping heightmm4000
Max. digging depthmm3560
Max. vertical wall digging depthmm2890
Max. digging radiusmm5995
Boom swing: right/leftdegree70 / 50
Min. turning radius (with swing)mm2375 (1875)
Min. tail turning radiusmm990
Max. breakout force (bucket)kN (kgf)36.5 (3720)
Track typeRubber / Steel
Track widthmm400
Travel SectionCrawler lengthmm2500
Tumbler distancemm1990
Travel speed (1st/2nd gear)km/h2.5 / 4.4
Max. climbing angledegree30
Swing speedrpm8.6
BladeBlade (width)mm1960
Blade (height)mm360
Max. lift above ground/drop below groundmm455 / 375
Hydraulic pump typeVariable pump x 1 + gear pump x 1
Swing motor typeHydraulic piston motor
Travel motor typeHydraulic piston motor: 2F
Fuel tank capacityL64

*Kubota reserves the right to change the specifications without notice.
