U17-3

SPACIOUS, COMFORTABLE AND
MORE PRODUCTIVE, YET IT FITS
IN THE TIGHTEST SPACE.

U15-3

U17-3

SPACIOUS, COMFORTABLE AND MORE PRODUCTIVE, YET IT FITS IN THE TIGHTEST SPACE.

Kubota mini excavator pursues customer satisfaction, evolves and gives you the best performance.

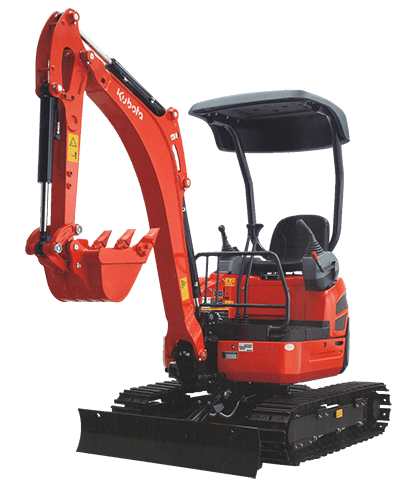

When you have to take on a tough job in a tight space, look no further than the versatile U15-3.
This compact excavator delivers necessary power, required control and smooth performance.
RATED OUTPUT (SAE J1995 GROSS)
11.8KW (16.0 HP) / 2,300 RPM
MACHINE WEIGHT (RUBBER/STEEL CRAWLER)
1,570 / 1,640KG
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

SHARE

FEATURES

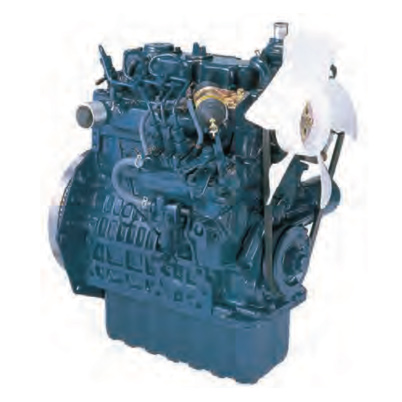

Powerful Engine

16HP engine provides sufficient power and reliability to your required job. In addition to its superior horsepower and performance, it also offers low noise, vibration level and exceptional fuel efficiency.

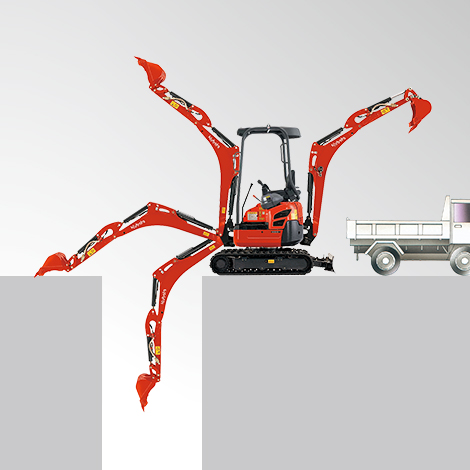

Operational Performance

The excellent reach and digging depth of U17-3 ensure that each digging operations is performed with maximum efficiency and speed.

  • Working performance
    • Max. bucket breakout force: 15.2kN(1545kgf)
    • Max. digging depth: 2310mm
    • Max. digging radius: 3900mm
    • Max. vertical wall digging depth: 1910mm
  • Variable track width
  • Boom cylinder
  • Boom swing
  • H・M・S Hydraulic System

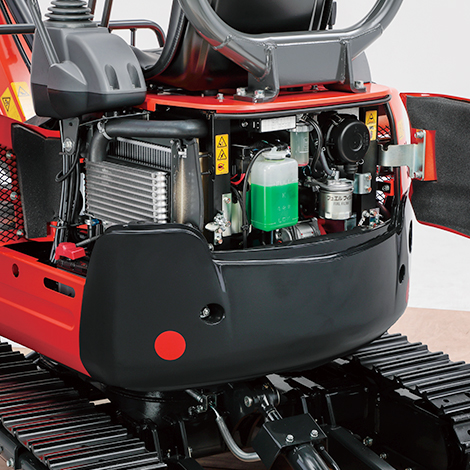

Easy Maintenance

If you’re looking for the easy maintenance, take a look at U17-3.
  • Two-piece dozer hose
  • Track tension spring
  • Protected front hoses
  • Protected motor hoses

Digital Panel

The user-friendly digital panel features one-touch button operation to view the time, working hour and engine rpm. Warning lamp with code number on the display alerts you in case of emergency such as overheating, hydraulic problem or low battery. With easier access, simpler setting, easy-to-read indicator and alert, you’re always aware of the excavator’s functioning status.
  • 1. Fuel level gauge
  • 2. Water temperature gauge
  • 3. Warning lamps (overheating, hydraulic, battery)
  • 4. LCD display (time, hour meter, tachometer)
    • MODELU17-3
    BUCKET CAPACITYm30.04
    Std.bucket width: (with/without cutting blade)mm450 / 400
    Machine weightkg1820
    Operating weight (Including operator weight: 75kgkg1895
    DIMENSIONS (in transport condition)Overall lengthmm3545
    Overall heightmm2340
    Overall widthmm990 / 1240
    Min. ground clearancemm150
    ENGINEModelKubota D902-K3A
    Total displacementcc898
    Rated output (SAE J1995 gross)kW (HP) / rpm11.8 (16.0) / 2300
    WORKING RANGEMax. digging heightmm3540
    Max. dumping heightmm2440
    Max. digging depthmm2310
    Max. vertical wall digging depthmm1910
    Max. digging radiusmm3900
    Boom swing (left/right)deg65 / 58
    Min. turining radius (with swing)mm1440 (1210)
    Min. tail turning radiusmm620
    Max. breakout force (bucket)kN (kgf)15.2 (1545)
    TRACK TYPESteel
    TRACK WIDTHmm230
    TRAVEL SECTIONCrawler lengthmm1585
    Tumbler distancemm1230
    Travel speed (1st/2nd gear)km / h2.1 / 4.1
    Max. climbing angledeg30
    SWING SPEEDrpm9.1
    BLADEWidthmm990 / 1240
    Heightmm265
    Max. lift above ground / drop below groundmm280 / 190
    HYDRAULIC PUMP TYPEVariable pump X 2 + gear pump X 1
    SWIVEL MOTOR TYPEOrbit motor
    TRAVEL MOTOR TYPEHydraulic piston motor: 2F
    FUEL TANK CAPACITYL19
    *Kubota reserves the right to change the specifications without notice.
