03 SERIES

SUPER 03 SERIES

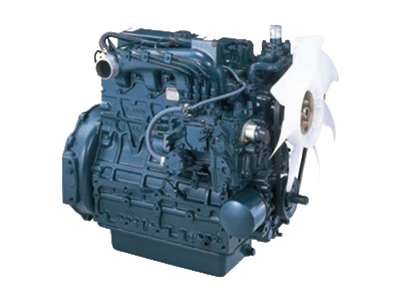

V2203

03 SERIES

SUPER 03 SERIES

E-TVCS Technology Improves Engine Performance

The concave recess on the piston head helps Kubota’s E-TVCS (THREE Vortex combustion systems) generate three intense swirling air flows (vortexes) within the spherical-combustion chamber to obtain an optimum air/fuel mixture. This superb combustion system improves the power output, fuel economy, and engine startups, while reducing both noise and toxic emissions.
Displacement
1.999 - 2.197L
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

SHARE

MODELV2203V2203-T
SPECIFICATIONSTypeWater Cooled Vertical Diesel EngineWater Cooled Vertical Diesel Engine
Number of Cylinders44
Bore & Stroke (mm)87.0mm x 92.4mm83.0mm x 92.4mm
Displacement (L)2.1971.999
Combustion SystemE-TVCSE-TVCS
Intake SystemNatural AspiratedNatural Aspirated
Max Output Net Intermittent (kW/rpm)34.3/280041.8/2800
Max Output Continuous (kW/rpm)29.8/280036.3/2800
Continuous Output Generator ( kW/rpm)20.2/180024.5/1800
Cooling SystemRadiator CoolingRadiator Cooling
Dry Weight (kg)180186
*Kubota reserves the right to change the specifications without notice.
