DC-70G Pro

PERFORMANCE BEYOND
YOUR EXPECTATION

DC-70G Pro

PERFORMANCE BEYOND
YOUR EXPECTATION

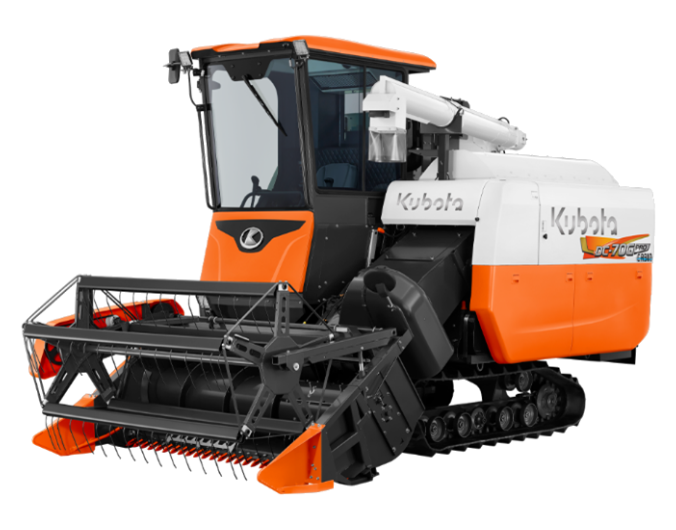

DC-70G Pro

Faster Harvesting, More Profitability, and Long-Term Durability
HORSE POWER
69.0PS
GRAINTANK CAPACITY
85L
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

FEATURES

Reliable Kubota Diesel Engine

The high-output, 69 PS Kubota diesel engine makes possible high-speed harvesting at 1.85m/s. It also contributes to outstanding operational results under high-load conditions such as in wet paddy fields and when encountering high-volume crops.

Large Capacity Grain Tank

The grain tank capacity is 1000kg. When the tank is fill up, it will be notified by the alarm and the notification on the meter panel.

Large Fuel Tank (can be padlocked)

The large capacity of the fuel tank contributes to longer hours of continuous operation as the need for refueling stops is reduced. A padlock is attached to the lid of the fuel tank. The padlock is not included in the unit. (Users should prepare it by themselves)

Long and Wide Crawlers

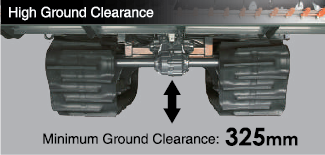

The light body along with the long and wide crawlers result in ground pressure being minimized. In combination with the high ground clearance, this contributes to an outstanding operational performance even in wey paddy fields.

Reliable Bearing Seals for the Rear Rollers

The reliable bearing seals act to prevent mud contamination and thereby extend the product life of the bearings.

Wide, Thick Track Rollers

The extended width of the track rollers acts to increase the contact area and reduce pressure and thereby contribute to the longer product life of the crawlers. The durability of the track rollers has been enhanced by increasing their thickness and heat-processing.

Thick Rubber Parts for Crawlers

Rubber parts that come into contact with the track rollers have been made thick for greater durability.

Large Area Sieve Case

The sieve case has a large area with a length of 1375mm, and width of 840mm, for highly efficient processing capacity and to reduce threshing losses.

Adjustable Chaffer Sieve

The chaffer sieve opening is adjustable to ensure optimal separation according to the amount of grain being processed.

Straw Rack

The straw rack is designed to prevent loss by recovering any grain that becomes mixed with the straw and returning it for reprocessing.
MODELDC-70G PRO CABINDC-70G PRO
DIMENSIONSOverall length (mm)4800
Overall width (mm)2295
Overall height (mm)2830
WEIGHT (kg)35103290
ENGINEModelKubota V2403-M-DI-TE-CS1T
TypeWater-cooled 4-cycle 4-cylinder vertical diesel engine (with turbocharger)
Total displacement (L (CC))2.434 [2434]
Output / Rotation speed (kW[PS]/rpm)50.8 [69.0] / 2700
Fuel tank capacity (L)85
TRAVEL SECTIONCrawlerWidth x Ground contact length (mm)500 x 1700
Center distance1250
Average ground contact pressure (kPa {kgd/cm²})20.2 {0.20}19.0 {0.19}
Minimum ground clearance (mm)325
Speed shift systemHST
Travel speedForward (m/s)[Range gear shift] Low speed: 0 to 0.97, Middle speed: 0 to 1.37, High speed: 0 to 1.85
Backward (m/s)
Turning systemClutch & Brake
REAPER SECTIONReelDiameter x Width900 x 1903
Up/down controlHydraulic system
Gathering Length (mm)2075
Cutter Bar Length (mm)1980
THRESHING PORTIONThreshing systemAxial flow system (threshing tooth system)
Threshing cylinderDiameter x Width (mm)620 x 1650
Rotations (rpm)560
Concave area (m²)1.456
Sorting systemOscillating/winnowing [3-stage-air-current sorting method]
GRAIN TANKCapacity1000 [1700]
Tuming angle of unloader: Power source (degrees)240°, electric motor
Grain discharge height range1785 to 4465
CABINModel of compressorSANDEN SD5H11-
Cooling capacity (BTU)20,000-
Cabing volume (m³)1.23-
Air conditioning vents4 positions-
ELECTRICAL SYSTEM12Volts battery starting, Lighting equipment, Alarms (Coolant temperature, Battery charge, Engine oil pressure, Grain tank full, Tailings auger clogged)
HARVESTING CAPACITY (ha/hr)0.3 - 0.62 for rice
*Kubota reserves the right to change the specifications without notice.
