KA6

FOR PROFESSIONAL
PERFORMANCE

KA6

FOR PROFESSIONAL
PERFORMANCE

KA6

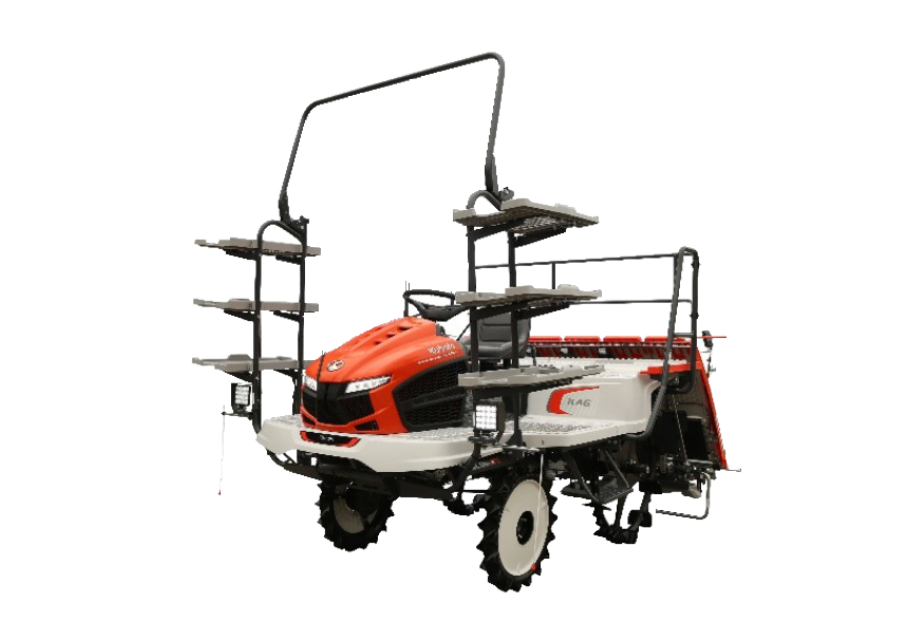

Kubota Ride-On Type Rice Transplanter (Diesel), KA6, realizes professional performance packed with functions which can realize speedy and precise rice transplanting.
HORSE POWER
21.6PS
PLANTING SPEED
1.70m/s
NUMBER OF PLANTING ROWS
6Rows
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

FEATURES

High Power Engine

The high-output diesel engine effortlessly handles heavy-duty operations, even in challenging conditions like muddy paddy fields.

With a mximum speed of 1.7 m/s - 0.05 m/s faster than the previous SPV series - these models deliver quicker task completion and enhanced efficiency.

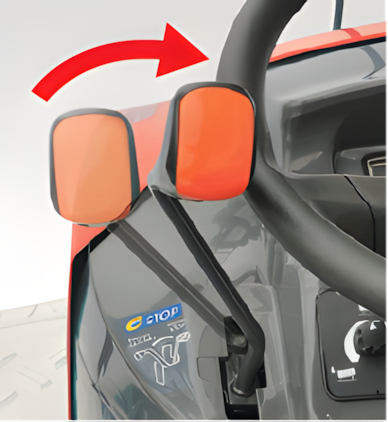

E-STOP

A simple manipulation of the HST lever is all that is required to efficiently stop and start the engine. When stopping to supply seedling mat or to refuel, this E-STOP feature contributes to a fuel cost reduction of between 5 – 10%.

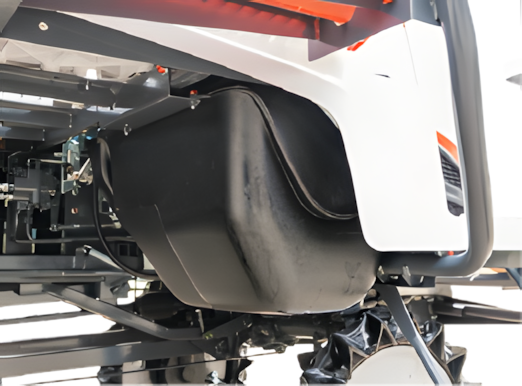

34L Capacity Fuel Tank

The 34L fuel tank capacity supports extended operation without the need for frequent refueling.

Adjustable Transplanting Settings

Seven transplanting trajectory patterns offer customizable options for hill spacing, seeding quality, and plating depth, enabling optimal adjustments to suit user preferences and field conditions.

Better Forward-leaning Posture of Planting Claws

A redesigned forward-leaning posture of the planting claws replicates the precision of manual planting, significantly reducing missed seedlings.

Horicontal Control Mechanism

The Horicontal Control Mechanism maintains a level planting section, even on uneven terrain, ensuring consistent and accurate planting.

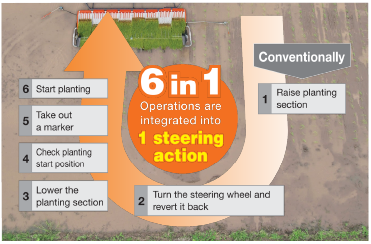

Smart Turning System

The automatic raise/lower function of the planting section and the line marker operation are seamlessly linked to handle turning. The machine automatically aligns planting with the previous row, making turns in paddy fields more efficient and significantly reducing operator workload.

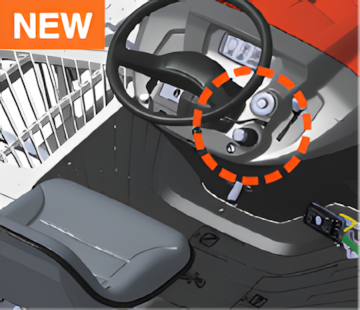

Multifunctional Lever

Can be operated with a single lever. The previous levers required an operating force of 6 kg per arm. The newly designed lever, operable with just a finger, reduces the required force to only 1 kg, ensuring effortless operation. Additionally, the lever's position has been optimized for improved usablity, allowing multiple actions to be executed with one hand while steeting the handle.

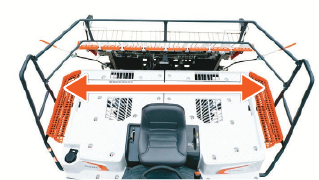

Wide Step (2.1m)

The wider step provides ample space for loading more seedlings, reducing refill frequency and creating a more comfortable work environment.

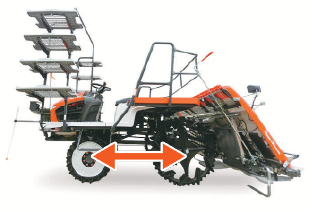

Long Wheelbase (1.19m)

The longer wheelbase enhances machine stability, allowing it to cross ridges and wet field conditions with greater ease.
MODELKA6
DRIVE TYPE4-wheel drive
DIMENSIONSOverall length (mm)3265
Overall width (mm)2210
Overall height (mm)2135
Minimum ground clearance (mm)500
WEIGHT (kg)810
ENGINEModelD902-EF81
TypeVertical water-cooling three-cylinder diesel engine
Total Displacement (L, cc)0.898 [898]
Output/ Revolution speed (kW(PS)/rpm)15.9 [21.6]/3200
Applicable FuelHigh-quality light diesel oil
Fuel tank capacity (L)34
Starting systemCell starter
Battery (V, Ah)12, 45
TRAVELLING PORTIONSteering systemIntegral power steering
WheelDiameterFront wheel (mm)655
Rear wheel (mm)950
TreadFront wheel (mm)1200
Rear wheel (mm)1200
Shifting systemHydrostatic transmission (HST)
Number of shifting positionsMain shift: Stepless forward travel, stepless reversing
(range gear shift: 2 gears, high-torque transmission: 2 gears)
PLATING PORTIONPlanting systemRotary type
Number of planting rows6
Distance between rows (cm)30
Hill space (cm)10, 12, 14, 16, 18, 21, 24
Planting depth (cm)1 to 5.2 [6 settings]
Number of hill-spacing adjustement settings7
LEVELING CONTROLAutomatic
OPERATIONAL SPEED (m/s)0 to 1.70
GS (GO STRAIGHT) FUNCTION-
*Kubota reserves the right to change the specifications without notice.
