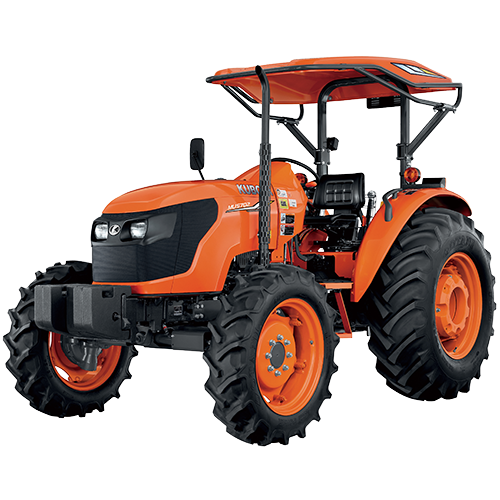

Kubota Diesel Tractor

A combination of size, weight, and powerful tractive force contributes to
efficient performances in a wide range of applications – even when faced
with tough field conditions.

HORSE POWER
57.1HP
ENGINE DISPLACEMENT
2,434cc
WEIGHT
2,350KG
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

SHARE

FEATURES

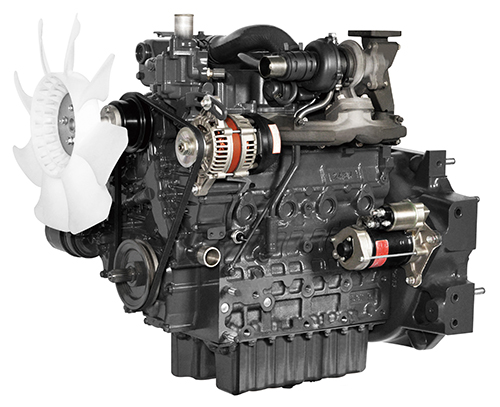

Kubota 57 HP Diesel Engine

With a displacement of 2,434 cc, the turbocharged water-cooled 4 cycle, 4 cylinder, direct injection Kubota 57 HP diesel engine model V2403-M-DI-T contributes to notably efficient performances-even in harsh conditions.

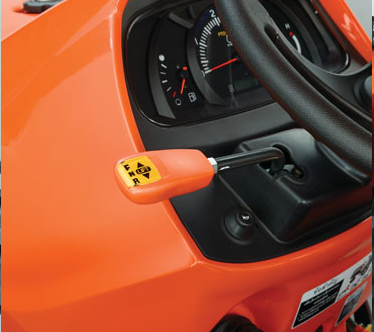

Synchro Shuttle

Shifting between forward and reverse is made quick and smooth with single lever operation.

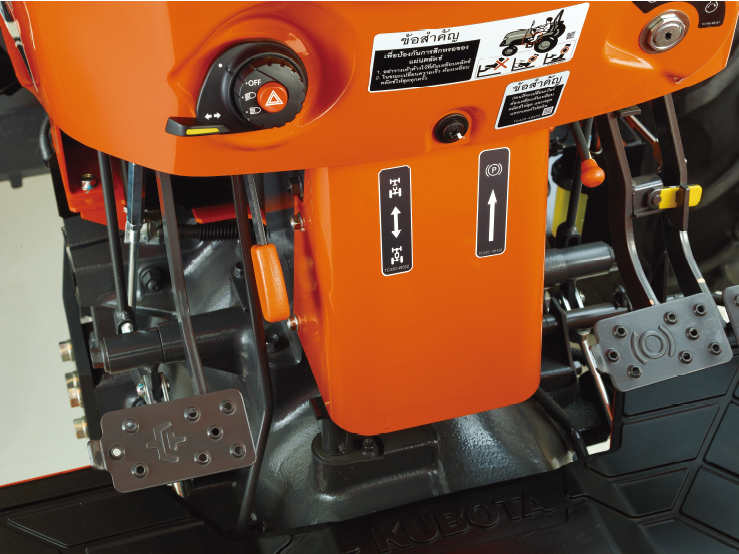

4-wheel Drive

The powerful tractive force and 4-wheel drive act to transmit power in an efficient, well-balanced manner. As a result, incidences of wheel spinning are significantly reduced.

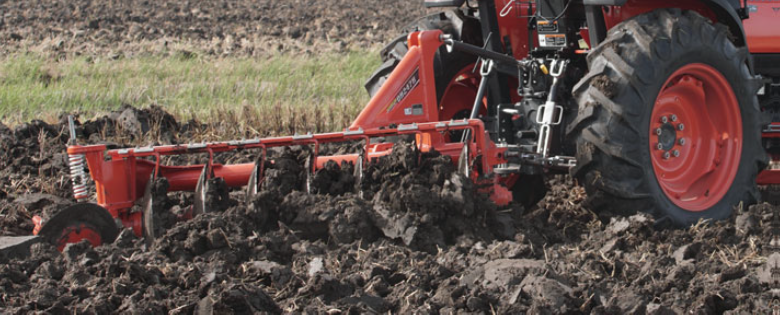

Powerful Tractive Force

MU5702 is designed to have strong and powerful structure, with weight over 2.5 ton, enhancing efficiency of work especially in dry-field.

Powerful Tractive Force

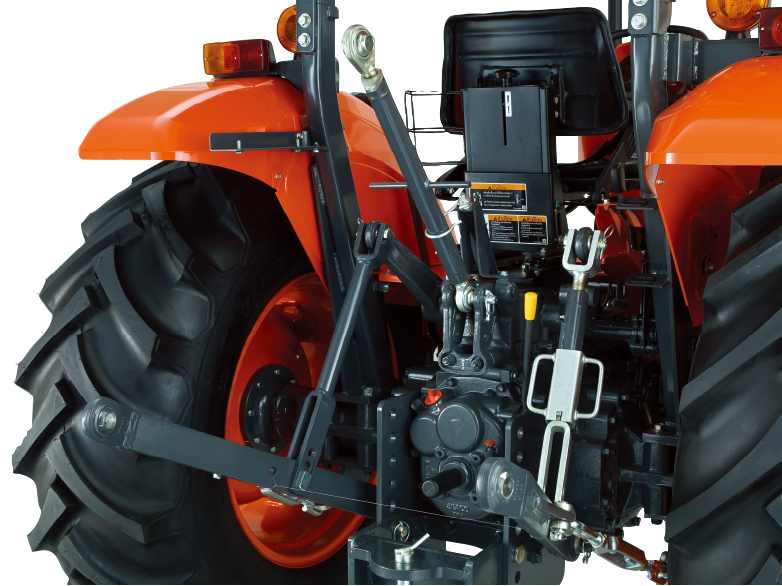

3-point Hitch

The 3-point Hitch securely accommodates implement weight and resistance factors and thereby perform implement operations more efficiently.

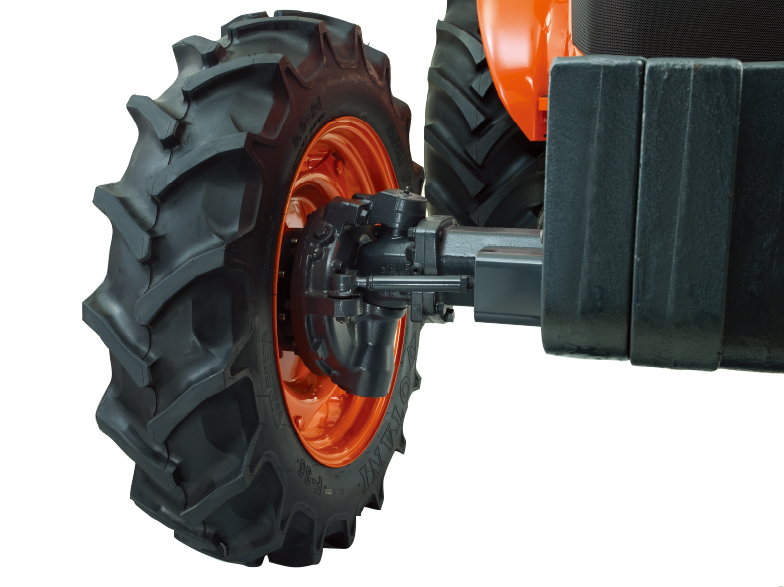

Front Axle and Front Wheel Hub

The tighter turning radius and the balanced tractive force of the Kubota Bevel Gear 4WD at all steering angles, enhances operational efficiency. In addition, mud and dust are prevented from penetrating the axle due to fact that the Bevel Gears are completely sealed.

MODELMU5702
Drive System4WD
ENGINETypeDirect injection, with turbocharger water-cooled 4 cycle diesel
ModelV2403-M-DI-T
Net powerHP(kW)54.5
Max. powerHP(kW)57.1
PTO powerHP(kW)36.4 (48.9)
Bore and strokemm87 x 102.4
Total displacementcc2434
Rated revolutionrpm2400
Max. torqueN-m213.8
Battery12 V / 55 Ah
Fuel tank capacity65
Traveling SystemFrontinch9.5 – 24
Rearinch16.9 – 28
Main transmissionSynchromesh
Directional transmissionSynchro Shuttle
TransmissionGear shift, 8 forward and 8 reverse
SteeringHydrostatic power steering
Braking systemMechanical, wet disc type
ClutchSingle dry-type
Front wheel drive systemComplete helical gear (Bevel gear)
Turning radius (with brake assistance)m3
SpeedForward (km/h)3.1 – 31.7 (max 35.1)
Backward (km/h)3.1 – 32.2
Power take off system (PTO shaft)Standard sizeSAE 1-3/8 inches 6 splines
PTO speed (engine speed)rpm540 at 2,258 engine speed 750 at 2,196 engine speed
Hydraulic systemPump flow rateℓ /min.30.5
Hydraulic control systemPosition, draft (top link sensing) and mix control
3-point hitchCategory 2
Max. lift forceAt lift point (kg)1800
24 inch behind lift point (kg)1550
Dimension/ weightWeight (without ballast)kg2,350
Overall length (without 3P and front ballast)mm3,250
Overall width (min. tread)mm1950
Overall height (to top of ROPS)mm2450
Wheelbasemm2050
Min. ground clearancemm415
TreadFront Wheel (mm)1445, 1475, 1560, 1590, 1645, 1675, 1755, 17485
Rear Wheel (mm)1520, 1630, 1710, 1820

*Kubota reserves the right to change the specifications without notice.
