SPV-6CMD NEW
FOR PROFESSIONAL PERFORMANCE
SPV-6CMD
FOR PROFESSIONAL PERFORMANCE

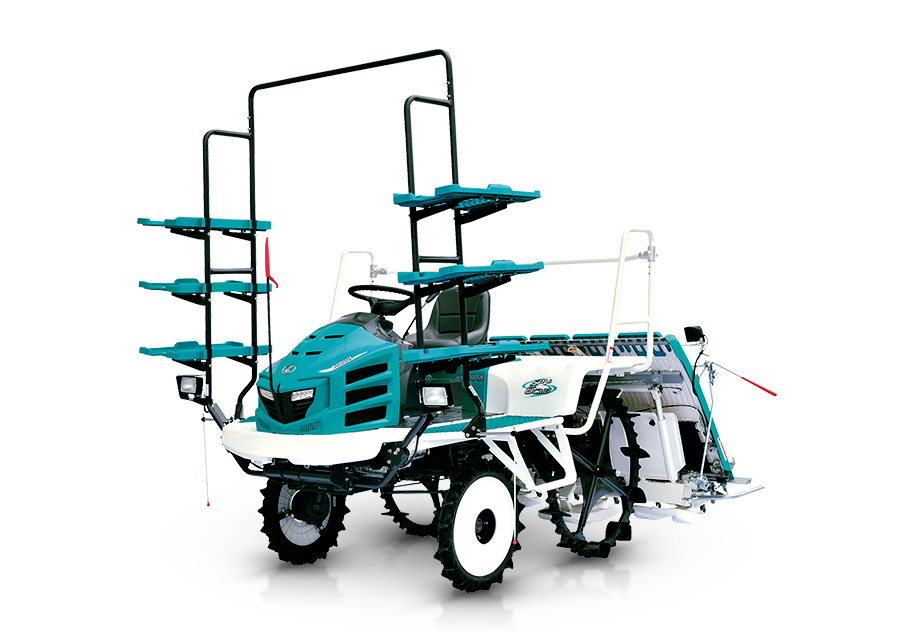

Kubota Ride-On Type Rice Transplanter (Diesel), SPV6MD, realizes professional performance packed with functions which can realize speedy and precise rice transplanting.
- HORSE POWER
- 19.6PS
- PLANTING SPEED
- 1.65m/s
- NUMBER OF PLANTING ROWS
- 6Rows
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.
FEATURES
Powerful Kubota Diesel Engine
The exceptionally durable, tenacious and fuel-efficient Kubota diesel engine that supplies power to the SPV-6 contributes to a superior operational performance. Other advantages include clean emissions and low noise.

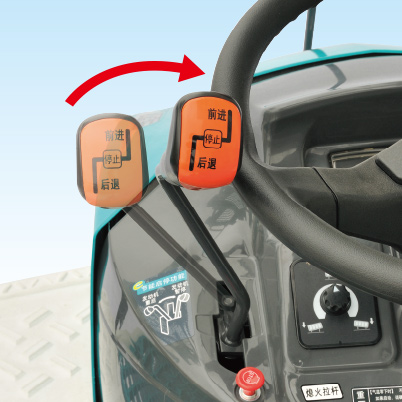

E-STOP
A simple manipulation of the HST lever is all that is required to efficiently stop and start the engine. When stopping to supply seedling mat or to refuel, this E-STOP feature contributes to a fuel cost reduction of between 5 – 10%.

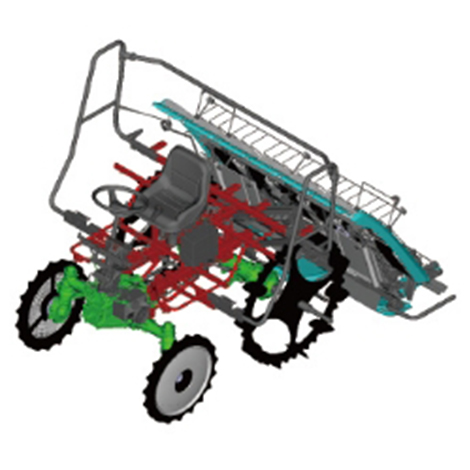

Improved Frame, Axle Shafts, and Transmission Gears
The newly designed frame, axle shafts, and transmission gears feature enhanced durability.
Reinforced Planting Arm
A newly designed oil seal prevents moisture from seeping into the reinforced planting arm. Also contributing to a significantly long service life are highly durable bushings.

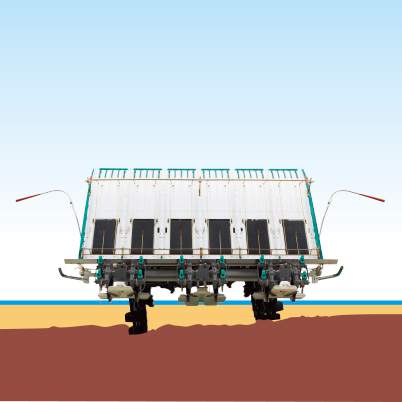

Automatic Horizontal Control
In undulating operational conditions that are liable to cause the plough pan to tilt, the automatic horizontal control (Auto Monroe System) automatically engages to maintain the transplanting unit in a horizontal position. This function is especially convenient when tilting of the transplanting unit is unavoidable such as during operations along a ridge.
High Torque Shift Lever
Simply engaging the high torque shift lever increases torque by a factor of 1.4 to contribute not only to smoother, more efficient operations in sticky, muddy situations, but also to make negotiating ridges easier.

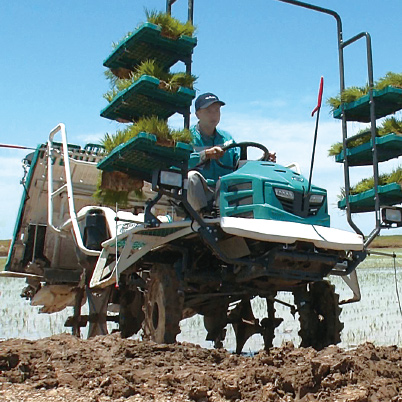

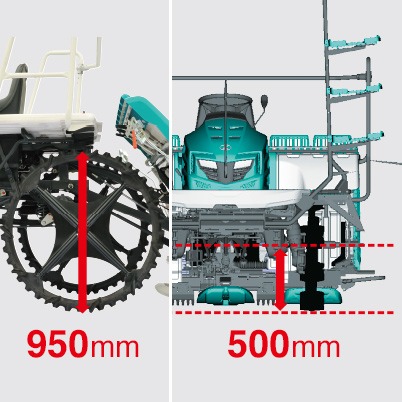

High Minimum Ground Clearance and Wide-Diameter Rear Wheels
A high minimum ground clearance of 500 mm along with the major diameter rear wheels (950mm) contributes to the outstanding performance of the SPV-6 in wet and muddy paddy fields.

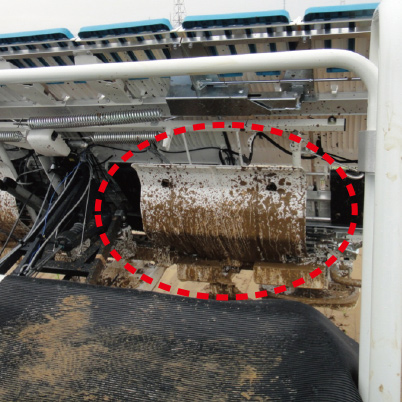

Mud Cover
A newly introduced and welcome feature is the mud cover protecting the transplanting unit.

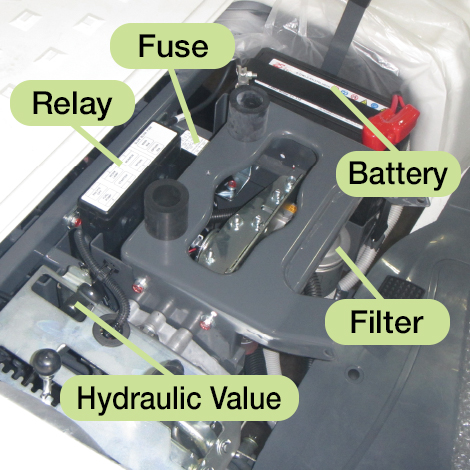

Parts Conveniently Located for Maintenance
With the hydraulic valve, filter, fuse, relay, and battery conveniently located beneath the seat, maintenance is noticeably easy.

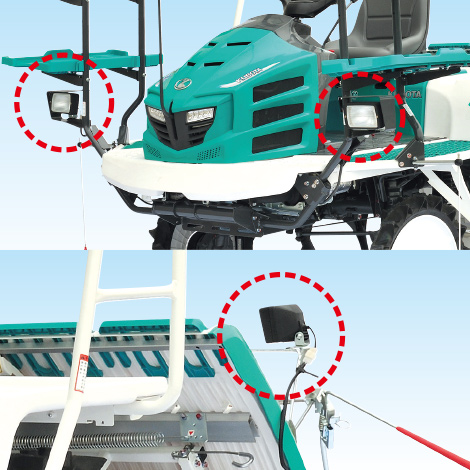

Luminous Lights
In addition to the LED type headlights, there are 4 work lights . 2 to the front with one on either side and 2 to the rear with one on either side.
VIDEO
MODEL | SPV-6CMD | ||
DIMENSIONS | Overall length (mm) | 3090/3050 | |
Overall width (mm) | 2220/2220 | ||
Overall height (mm) | 2600/2600 | ||
WEIGHT (kg) | 805 | ||
ENGINE | Total displacement (cc) | 778 | |
Output kW(PS) | 14.4 (19.6) | ||
Fuel tank capacity (L) | 34 | ||
Type | Water-cooled, 4-cycle, 3-cylinder diesel engine | ||
TRAVELING PORTION | Shifting system | Hydrostatic transmission (HST) | |
Number of shifting positions | HST main shift: Variable speeds for forward and reverse Sub shift: 2 positions, High torque shift: 2 positions |
||
Minimum ground clearance (mm) | 500 | ||
PLANTING PORTION | Number of planting rows | 6 | |
Distance between rows (mm) | 300 | ||
Planting depth (cm) | 1-5.5 (7 positions) | ||
Hill space (cm) | 10, 12, 14, 16, 18, 21, 24 | ||
Planting horizontal control mechanism | Monroe | ||
OPERATION SPEED (m/s) | 1.65 | ||
OPERATION EFFICIENCY (ha/h) | 0.2~0.4 |
*Kubota reserves the right to change the specifications without notice.
