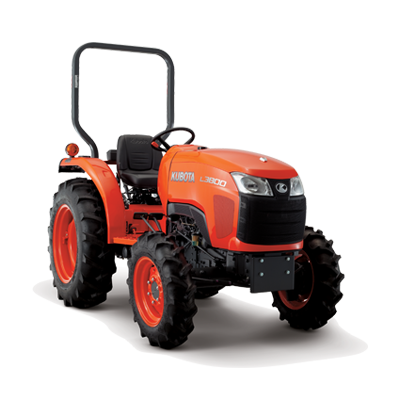

L3200/L3800

L3200/L3800

L3200/L3800

Kubota’s versatile new L-Series standard tractors deliver the outstanding performance you can rely on. Kubota’s new L3200/L3800 tractors offer a wide assortment of innovative features to provide more power, more comfort and more efficiency, giving your productivity a boost. With so much versatility at your command, these tractors are the best choice for the job, whatever it may be.
HORSE POWER
31.9 - 37.4HP
ENGINE DISPLACEMENT
1,499 - 1,826cc
WEIGHT
1,180 - 1,205KG
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

FEATURES

Engine

With more horsepower than ever before, the L3200 (31.9HP) and L3800 (37.4HP) tractors will drive you to a higher level of performance.
The L3200 features an over-running rear PTO and puts out 26.7 PTO HP. The L3800, providing 31.5 PTO HP, includes live, continuous-running rear PTO for easier operation.

Transmission

You’ll finish the big jobs easily with the mechanical shuttle transmission featuring inline shifting in the low and reverse ranges for faster direction changes. Moreover, the transmission offers 8 forward and 4 reverse speeds (8F/4R), enabling you to select the right speed for higher productivity.

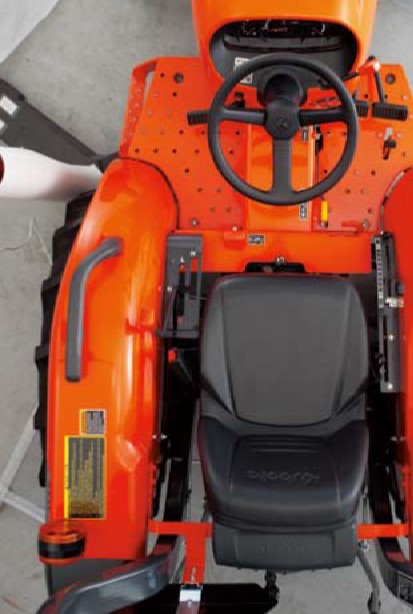

Comfort

The L-Series brings more comfort to hard work, with a spacious and ergonomic operator layout, suspension seat and more. To provide maximum comfort, the L3200 and L3800 feature a spacious operator platform. Its semi-flat design also makes getting on and off the tractors easier. The suspension seat offers a high level of comfort. This contoured seat is ergonomically designed to reduce fatigue, even after long workdays. To further enhance access and entry/exit, the PTO lever is located to the right side of the deck center cover.

Design

The new, smooth and rounded design not only looks advanced, but offers better visibility to help ease operation as well. The slanted hood provides a greater field of vision, and can be fully opened for easier maintenance. The radiator screen easily slides in and out to simplify its cleaning. The new multiple headlamps are useful in dark and inclement conditions.

VIDEO

MODELL3200L3800
4WD
ENGINEModelD1503-M-E3D1803-M-E3
TypeIndirect injection, vertical, water-cooled 4-cycle diesel
Engine gross powerHP(kW)31.9 (23.8)37.4 (27.9)
Engine net powerHP(kW)30.4 (22.7)35.9 (26.8)
PTO powerHP(kW)26.7 (19.9)31.5 (23.5)
No. of cylinders3
Bore & strokemm83 × 92.487 × 102.4
Total displacementℓ1.4991.826
Rated speedrpm28002700
Battery12V, RC: 123 min, CCA: 490 A
Fuel tank capacityℓ38
PTOPTO / Engine speedrpm540 / 2430540 / 2425
HYDRAULICLift control typePosition control
Pump capacity (main)ℓ /min24.723.9
3-point hitchCategory I
Lift capacityat lift points (kg)906
24 in. behind lift points (kg)651
System pressurekgf/cm2 (MPa)160 (15.7)
TRAVELLING SYSTEMTransmission8 forward and 4 reverse, sliding gear and constant mesh
SteeringIntegral type power steering
BrakeWet disc type
ClutchDry type single stageDry type dual stage
DIMENSIONSTreadFront (mm)1085
Rear (mm)1115 / 1195 / 1295
Overall length (w/o 3P)mm2450
Overall width (min. tread)mm1370
Overall height (w/ROPS)mm1985
Wheelbasemm1610
Weight (with ROPS)kg748765
Min. ground clearance340
TIRESFront (mm)7-16
Rear (mm)11.2-24
*Kubota reserves the right to change the specifications without notice.
