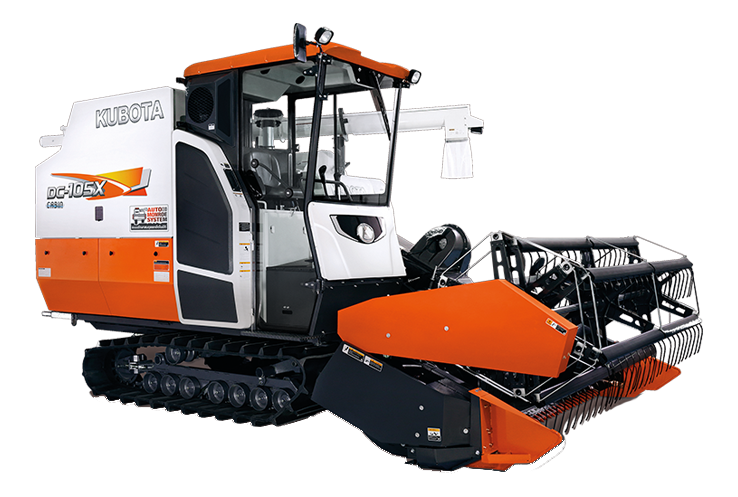

DC-105X NEW
PERFORMANCE BEYOND YOUR EXPECTATION
DC-105X
PERFORMANCE YOUR EXPECTATION
Faster Harvesting, More Profitability, and Long-Term Durability
- HORSE POWER
- 105PS
- GRAINTANK CAPACITY
- 2350L
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.
FEATURES
Wider Reaping width
Wider Reaping width
Reaping width has been increased from 2.53 m to 2.76m; this allows for greater harvesting efficiency at a 10% improvement. Harvest more and whilst saving time.
Auto Monroe System
Auto Monroe System
The excellent performance of U15-3 delivers you the best output at any time.
- Working performance
- Max. bucket breakout force: 15.2kN(1545kgf)
- Max. digging depth: 2310mm
- Max. digging radius: 3900mm
- Max. vertical wall digging depth: 1910mm
- Variable track width
- Boom cylinder
- Boom swing
- H・M・S Hydraulic System
High Threshing Performance
To improve grain harvest, the threshing drums length has been increased from 1790 to 2210 mm. This allows for optimum yield of crop to be harvested and minimizes crop loss.
High Threshing Performance
105HP Diesel Engine
Designed with center direct injection (CDIS), this gives the engine improved fuel efficiency and power to conduct field operations for longer hours with less refueling intervals.
105HP Diesel Engine
MODEL | DC-105X | |
Classification | Grain Tank | |
MACHINE DIMENSIONS | Overall length (mm) | 5640 |
Overall width (mm) | 3045 | |
Overall height (mm) | 3040 | |
Weight (kg) | 4630 | |
ENGINE | Model | V3800DI – TIE2 – CT |
Type | Water-cooled four-cycle four-cylinder vertical diesel engine (with turbocharger) | |
Total Displacement (L, cc) | 3.769 (3769) | |
Output/ Rotation speed (kW(PS)/rpm) | 77.2 (105.0)/ 2600 | |
Fuel | Diesel | |
Fuel Tank Capacity (L) | 105 | |
Starting system | Starter motor | |
Battery (V, Ah) | 12/ 80 | |
CRAWLER | Center distance (mm) | 1475 |
Width x Ground contact length (mm) | 575 x 1900 | |
Average ground pressure kPa (kgf. cm2) | 20.7 (0.21) | |
Minimum ground clearance (mm) | 325 to 425 | |
Speed shift system | Hydrostatic Transmission [HST] | |
Number of speeds | Stepless forward and backward [3-step range gear shift each for forward and backward] |
|
TRAVELING SPEED (m/s) | Forward | Low speed : 0 to 0.85; Middle speed : 0 to 1.35; High speed : 0 to 1.90 |
Backward | ||
Turning system | Brake-turn system | |
REEL | Diameter x Width (mm) | 900 x 2590 |
Speed shift system | Constant rotation (3-speeds) | |
Up/ Down control | Hydraulic system | |
Reaping width (mm) | 2760 | |
Blade width (mm) | 2667 | |
Reaping height range (mm) | -19 to 900 [Cutting blade tip] | |
Thresher system | Axial flow system [Threshing tooth system] | |
THRESHER DRUM | Threshing tooth type | Tooth |
Diameter x Width (mm) | 620 x 2210 | |
Rotation speed (rpm) | 550 | |
Reprocessing system using tailings auger screws | Screw Conveyance system | |
Cleaning | 3 Way air stream cleaning system | |
Concave area (6 sheets) m2 | 1.6 | |
Grain tank capacity (L) | 2350 | |
UNLOADER | Discharging system | Screw Conveyance system |
Turning angle (degrees) | 235/ Electrical motor | |
Up/ Down range (degrees)/ Up/Down system | -2 to 43/ Hydraulic system | |
Discharging height (in operation) (mm) | 1930 to 4810 | |
Discharging length (in operation) (mm) | 2870 to 3883 | |
Optional accessories | Corn Kit |
*Kubota reserves the right to change the specifications without notice.
