J 315
EASY TO USE ANYWHEREFOR LONGER PERIODS OF TIME
J 315
EASY TO USE ANYWHERE FOR LONGER PERIODS OF TIME
Easy To Use Anywhere For Longer Periods Of Time

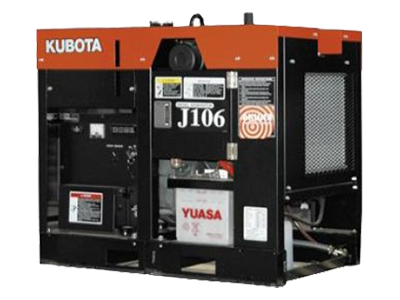

These semi-open type generators are powered by either a super mini or a Kubota 05 Series engine. The series “easy to use anywhere” design permits operation even in limited space.
The larger capacity fuel tank and its exceptional fuel efficiency guarantee longer hours of continual electrical energy on a single tank of fuel.
- THREE PHASE
- 15.2-30.4AMPS
- OUTPUT RANGE
- 15.0kVA
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.
| MODEL | J106 | J108 | J112 | J116 | |||
| SPECIFICATION | Type | – | |||||
| Frequency | Hz | ||||||
| Standby Output | kVa(kW) | 6.0(6.0) | 8.8(8.8) | 13.2(13.2) | 17.6(17.6) | ||
| Prime Output | kVa(kW) | 5.5(5.5) | 8.0(8.0) | 12.0(12.0) | 16.0(16.0) | ||
| Voltage – Single Phase | V | 220 | |||||
| Voltage – Three Phase | V | – | |||||
| Armature Connection | – | Single | |||||
| Phase / Wire | – | ½ | |||||
| Power Factor | – | 1 | |||||
| No. of Poles | – | 2 | |||||
| Insulation | Class | Rotor coil; class F, Stator coil; class B | |||||
| Voltage Regulation | % | 7.0 (No load to full load) | 8.0 (No load to full load) | ||||
| Type of Coupling | – | Direct coupled | |||||
| AMPS | Single Phase 220V | A | 25 | 36.4 | 54.5 | 72.7 | |
| Three Phase 380V | A | – | |||||
| NO. OF RECEPTACLES | 6-15R | – | N/A | ||||
| TERMINAL | Terminal | – | Available | ||||
| DIESEL ENGINE | Type | – | Vertical, water-cooled, 4-cycle diesel engine | ||||
| Model | – | Z482 | D722 | D1005 | V1305 | ||
| No. of Cylinders | – | 2 | 3 | 3 | 4 | ||
| Bore x Stroke | mm(in.) | 67.0×68.0(2.6×2.7) | 76.0×73.6(2.99×2.90) | ||||
| Displacement | LL (cu. In.) | 0.479 (29.2) | 0.719 (43.9) | 1.001 (61.1) | 1.335 (81.5) | ||
| Engine Speed | Rpm | 3000 | |||||
| Continuous Rated Output | kW (HP) | 6.9(9.3) | 10.4(14.0) | 14.4(19.3) | 19.3(25.9) | ||
| Lubricant (API classification) | – | Above CD grade | |||||
| Oil Capacity | L (qts.) | 2.2 (2.32) | 3.4(3.60) | 4.3(4.54) | 5.7(6.02) | ||
| Coolant Capacity | L (qts.) | 2.3(2.43) | 3.0(3.17) | 3.3(3.49) | 3.5(3.70) | ||
| Starting System | – | Electric – 12 volt DC | |||||
| SET | Fuel | – | Diesel fuel No.2 (ASTM D975) | ||||
| Fuel Consumption | At Full Load | L/h (gal/h) | 2.2 (0.6) | 3.1 (0.8) | 4.6 (1.2) | 6.1 (1.6) | |
| At ¾ Load | L/h (gal/h) | 1.7 (0.5) | 2.5 (0.7) | 3.7 (1.0) | 4.9 (1.3) | ||
| At ½ Load | L/h (gal/h) | 1.4 (0.4) | 2.1 (0.5) | 3.0 (0.8) | 4.0 (1.1) | ||
| At ¼ Load | L/h (gal/h) | 1.1 (0.3) | 1.6 (0.4) | 2.4 (0.6) | 3.1 (0.8) | ||
| Fuel Tank Capacity | L (gal.) | 37.0 (9.8) | 37.0 (9.8) | 79.0 (20.9) | 79.0 (20.9) | ||
| Continuous Operation Hours | At Full Load | h | 17.7 | 11.8 | 17 | 12.9 | |
| At ¾ Load | h | 21.3 | 14.7 | 21.2 | 16.2 | ||
| At ½ Load | h | 26.1 | 18 | 26.1 | 19.8 | ||
| At ¼ Load | h | 33.3 | 23.1 | 33.5 | 25.4 | ||
| Battery (Ah/5h) | – | 12V (28Ah) | 12V (36Ah) | 12V (55Ah) | 12V (55Ah) | ||
| Dimensions LxWxH | mm | 923x593x860 | 995x593x860 | 1215x611x922 | 1300x611x922 | ||
| (in.) | (36.4×23.3×33.8) | (39.2×23.3×33.8) | (47.8×24.1×36.3) | (51.1×24.1×36.3) | |||
| Approx. Net Weight | Kg(lbs.) | 225 (496) | 255 (562) | 340 (750) | 380 (838) | ||
| Sound Level (Full Load at 23 ft. [7m]) | cB (A) | 74 | 75 | 76.5 | 77.5 | ||
| Emergency Stop System | – | In case of abnormal: Oil pressure, water temperature | In case of abnormal: Oil pressure, water temperature, fan belt broken | ||||
*Kubota reserves the right to change the specifications without notice.
| MODEL | J310 | J315 | J320 | |||
| SPECIFICATION | Type | – | ||||
| Frequency | Hz | |||||
| Standby Output | kVa(kW) | 11.0(8.8) | 16.5(13.2) | 22.0(17.6) | ||
| Prime Output | kVa(kW) | 10.0(8.0) | 15.0(12.0) | 20.0(16.0) | ||
| Voltage – Single Phase | V | 220 | ||||
| Voltage – Three Phase | V | 380 | ||||
| Armature Connection | – | Star with neutral | ||||
| Phase / Wire | – | ¾ | ||||
| Power Factor | – | 0.8 | ||||
| No. of Poles | – | 2 | ||||
| Insulation | Class | Rotor coil; class F, Stator coil; class B | ||||
| Voltage Regulation | % | 8.0 (No load to full load) | ||||
| Type of Coupling | – | Direct coupled | ||||
| AMPS | Single Phase 220V | A | 9.1 x 3 | 13.7 x 3 | 18.2 x 3 | |
| Three Phase 380V | A | 15.2 | 22.8 | 30.4 | ||
| NO. OF RECEPTACLES | 6-15R | – | N/A | |||
| TERMINAL | Terminal | – | Available | |||
| DIESEL ENGINE | Type | – | Vertical, water-cooled, 4-cycle diesel engine | |||
| Model | – | D722 | D1005 | V1305 | ||
| No. of Cylinders | – | 3 | 3 | 4 | ||
| Bore x Stroke | mm(in.) | 67.0×68.0(2.6×2.7) | 76.0×73.6(2.99×2.90) | |||
| Displacement | LL (cu. In.) | 0.719 (43.9) | 1.001 (61.1) | 1.335 (81.5) | ||
| Engine Speed | Rpm | 3000 | ||||
| Continuous Rated Output | kW (HP) | 10.4(14.0) | 14.4(19.3) | 22.0(29.5) | ||
| Lubricant (API classification) | – | Above CD grade | ||||
| Oil Capacity | L (qts.) | 3.4(3.60) | 4.3(4.54) | 5.7(6.02) | ||
| Coolant Capacity | L (qts.) | 3.0(3.17) | 3.3(3.49) | 3.5(3.70) | ||
| Starting System | – | Electric – 12 volt DC | ||||
| SET | Fuel | – | Diesel fuel No.2 (ASTM D975) | |||
| Fuel Consumption | At Full Load | L/h (gal/h) | 3.1 (0.8) | 4.5 (1.2) | 6.0 (1.6) | |
| At ¾ Load | L/h (gal/h) | 2.4 (0.6) | 3.6 (0.9) | 4.8 (1.3) | ||
| At ½ Load | L/h (gal/h) | 2.0 (0.5) | 2.9 (0.8) | 3.9 (1.0) | ||
| At ¼ Load | L/h (gal/h) | 1.6 (0.4) | 2.3 (0.6) | 3.1 (0.8) | ||
| Fuel Tank Capacity | L (gal.) | 37.0 (9.8) | 79.0 (20.9) | 79.0 (20.9) | ||
| Continuous Operation Hours | At Full Load | h | 12.1 | 17.6 | 13.1 | |
| At ¾ Load | h | 15.2 | 22 | 16.4 | ||
| At ½ Load | h | 18.6 | 27 | 20.1 | ||
| At ¼ Load | h | 23.9 | 34.6 | 25.7 | ||
| Battery (Ah/5h) | – | 12V (36Ah) | 12V (55Ah) | 12V (55Ah) | ||
| Dimensions LxWxH | mm | 995x593x860 | 1215x611x922 | 1300x611x922 | ||
| (in.) | (39.2×23.3×33.8) | (47.8×24.1×36.3) | (51.1×24.1×36.3) | |||
| Approx. Net Weight | Kg(lbs.) | 255 (562) | 340 (750) | 380 (838) | ||
| Sound Level (Full Load at 23 ft. [7m]) | cB (A) | 75 | 76.5 | 77.5 | ||
| Emergency Stop System | – | In case of abnormal: Oil pressure, water temperature | In case of abnormal: Oil pressure, water temperature, fan belt broken | |||
*Kubota reserves the right to change the specifications without notice.
