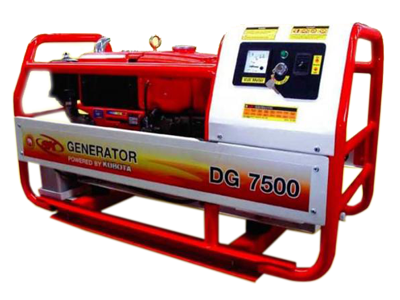

DG 7500 NEW
QUICK STARTS ANDEASY TO OPERATION
DG 7500
QUICK STARTS AND EASY TO OPERATION
Kubota Generator is more Durable, Economical, Quick starts and Easy to operation.
Dependable diesel power plus.
- HORSE POWER
- 14.0HP
- FUEL TANK CAPACITY
- 11L
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.
ENGINE | Type | Horizontal water cooled 4 cycle diesel engine | |
Model | KUBOTA RT 140DI | ||
No. of Cylinders | 1 | ||
Bore x Stroke (mm) | 97 x 96 | ||
Displacement (cc) | 709 | ||
Maximum Output (HP/rpm) | 14.0/2400 | ||
Continuous Rated Output (HP/rpm) | 12.5/2400 | ||
Lubricating Oil | SAE # 40 API CF | ||
Cooling System | Radiator | ||
Fuel | Light Diesel Oil (SAE # 2-D) | ||
Fuel Tank Capacity (L) | 11 | ||
GENERATOR | Type | Brushless | |
Model | MECC ALTE S20 FS-130/A | ||
Max. Output (kVA) | 7.5 | ||
Rated Output (kVA) | 7 | ||
Revolutions per minute (rpm) | 3000 | ||
Frequency (Hz) | 50 | ||
No. of Pole | 2 | ||
Power Factor | 1 | ||
Phase | 1 Phase 2 Wire | ||
Voltage (AC) | 220 | ||
Insulation | Class H | ||
DIMENSION AND WEIGHT | Width (mm) | 597 | |
Length (mm) | 1283 | ||
Height (mm) | 703 | ||
Net weight (Dry) (Kg) | 275 | ||
GENERATOR CAPACITY (FOR HOME USED) | Air Conditioner | 12,000BTU (4800W) | |
Small Refrigerator | 90W | ||
Television 29″ | 145W | ||
Electric Fet | 750W | ||
Fan 16″ | 80W | ||
Stereo | 75W | ||
Light (Home Use) | 36W | ||
Computer & Printer | 850W |
*Kubota reserves the right to change the specifications without notice.
