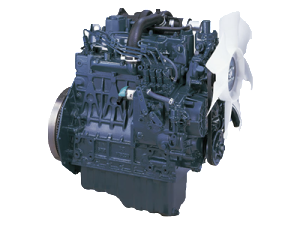

V 1505

SUPER 05 SERIES

V1505-300x225

V 1505

SUPER 05 SERIES

E-TVCS Technology Improves Engine Performance

The concave recess on the piston head helps Kubota’s E-TVCS (THREE Vortex combustion systems) generate three intense swirling air flows (vortexes) within the spherical-combustion chamber to obtain an optimum air/fuel mixture. This superb combustion system improves the power output, fuel economy, and engine startups, while reducing both noise and toxic emissions.
DISPLACEMENT
1.999 - 2.197L
Experience the wonder of Kubota with product demonstration! Please contact your local distributor.

SHARE

MODELD905D1105V1305V1505
SPECIFICATIONSTypeWater Cooled Vertical Diesel EngineWater Cooled Vertical Diesel EngineWater Cooled Vertical Diesel EngineWater Cooled Vertical Diesel Engine
Number of Cylinders3344
Bore & Stroke (mm)72.0mm x 73.6mm78.0mm x 78.4mm76.0mm x 73.6mm78.0mm x 78.4mm
Displacement (L)0.8981.1231.3351.498
Combustion SystemE-TVCSE-TVCSE-TVCSE-TVCS
Intake SystemNatural AspiratedNatural AspiratedNatural AspiratedNatural aspirated
Max Output Net Intermittent (kW/rpm)27.5/360018.7/300025.7/360025.0/3000
Max Output Continuous (kW/rpm)15.2/360016.2/300022.4/360021.7/3000
Continuous Output Generator ( kW/rpm)15.3/360016.4/300022.4/360021.6/3000
Cooling SystemRadiator CoolingRadiator CoolingRadiator CoolingRadiator Cooling
Dry Weight (kg)9397110110
*Kubota reserves the right to change the specifications without notice.
